Matlab Stimulus Presenter: manual
by Dr. Sita ter Haar, Erwin Diepgrond en Tonny Mulder
1
Make sure MATLAB 64bits version 2015 or higher is installed on your computer and you have a valid license.
2
Download the latest version of MATLAB Stimulus Presenter and the additional software necessary to run it properly. You can find installation instructions HERE
NOTE
MATLAB is picky on characters you can use for folders and filenames
- Do use: letters, numbers and/or underscores
- Do NOT use: spaces and all characters that are not letters, numbers and/or underscores
4
Set the search folder (‘current folder’) in MATLAB to the folder where you stored the MATLAB Stimulus Presenter program files and where start.m is presented.
NOTE: Even if certain folders are still dimmed, don't add them to the search path.
5
Starting the program: select one option! NOTE: THIS MAY TAKE A WHILE, the first time.
1) typing ‘start’ in the command window (bottom of the screen)
2) dragging start.m to the command window
3) NOTE: ONLY USE THIS OPTION IF YOU REALLY WANT TO EDIT the file!. Double click start.m. This opens the start.m file in the editor. Then click on the green ‘Run’‐button.
6
If everything worked well during the installation, start opens the window below.
BEFORE YOU START
Before you START cranking out an experiment, Relax, think and contemplate!
First, start by constructing a plan, take a piece of paper and sketch it out. Build one trial, on paper. What's the order of events, time intervals etc etc. Then open Matlab stimulus presenter and enjoy!
START THE PROGRAM
1) typing ‘start’ in the command window (bottom of the screen)
2) by dragging start.m to the command window
3) Via the edit Mode. DANGER: ONLY USE THIS OPTION IF YOU REALLY WANT TO EDIT. Double clicking start.m and then clicking on the green ‘Run’‐button. This opens the start.m file in the editor.
CREATE AN EXPERIMENT
The following section will guide you through the steps of creating an experiment. Before creating an experiment, you need to create a stimulus set. The stimulus set contains stimuli to be presented (images, sounds, text etc.). You need separate stimulus sets for each type of stimulus (one audio set and one picture set if you use both in one experiment).
First: START THE PROGRAM
Start by creating stimulus sets

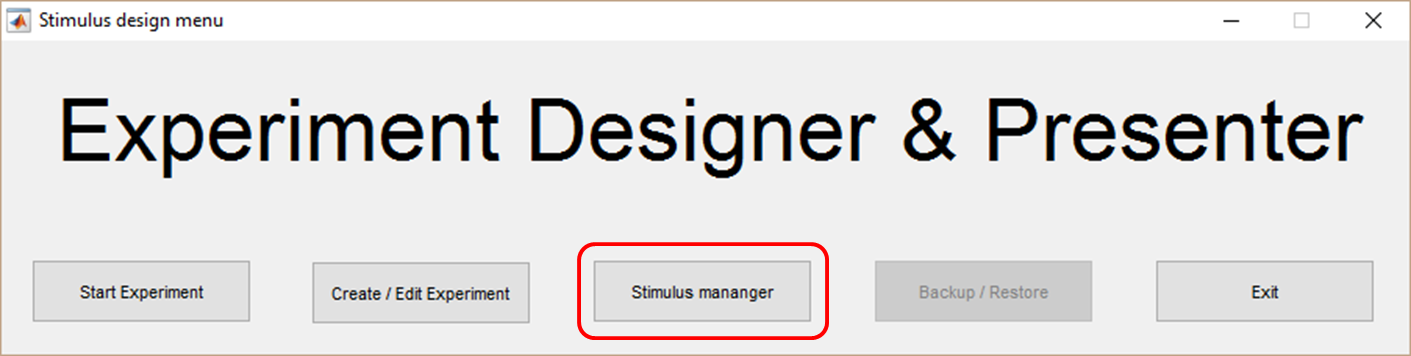

start opens the window below
Stimulus Manager
Open the 'stimulus manager' to create stimulus sets.
Name the stimulus set. Preferably use an intuitive name in order to avoid confusion when creating experiments using that stimulus set.

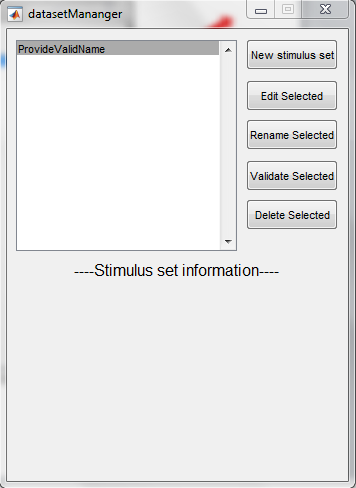

Stimulus Set Manager
‐New stimulus set: Create new Stimulus Set
-Edit selected: Edit existing Stimulus Set
‐Validate Selected: This option checks if the selected stimulus set is correct, for example if you are missing files.

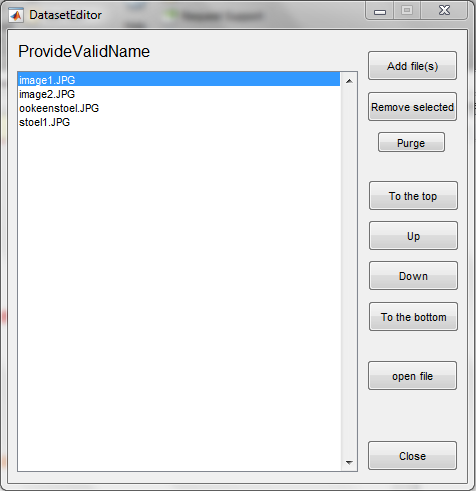

Stimulus set Editor
‐Add files:Select files of a single type (audio, image etc.).
- For images make sure the resolution is not more than the resolution of the screen you will be using when you perform the experiments. If you don't, the images will be morphed. So, If you want to run the experiment on more than one laptop, check the resolution of all of them in advance (Windows: settings>system>display).
- By default, files are loaded in the order they are selected in the source folder. To add multiple files, select all files to be added.
- Selected files with the same name as already available in the stimulus set, will overwrite the existing ones.
- The original files in the source folder will never be overwritten or deleted by actions in the stimulus set editor.
‐Purge: this removes any unused files in the data set folder. Unused files occur when a file is manually removed from the ‘Dataset’ folder in MATLAB.
‐To the top/Up/Down/To the bottom: Change the order of the files in the stimulus set. Files will be presented in the order as shown in the stimulus set. Unless the randomization option is used (see Seed and Randomness).
‐Open file: opens the file in the default windows/mac application in order to view the file content. Closing the view window will get you back to the data set editor.
Stimulus Manager
start opens the following window
Figure: Name the stimulus set
Figure: Loaded stimulus sets
Figure: Files within a selected stimulus set
DESIGN AN EXPERIMENT
The following section will guide you through the steps of designing an experiment. Before creating an experiment, you need to create a stimulus set. The stimulus set contains stimuli to be presented (images, sounds, text etc.). You need separate stimulus sets for each type of stimulus (one audio set and one picture set if you use both in one experiment).
START THE PROGRAM
1) typing ‘start’ in the command window (bottom of the screen)
2) by dragging start.m to the command window
3) Via the edit Mode. DANGER: ONLY USE THIS OPTION IF YOU REALLY WANT TO EDIT. Double clicking start.m and then clicking on the green ‘Run’‐button. This opens the start.m file in the editor.
Start by creating experimental blocks
start opens the window below

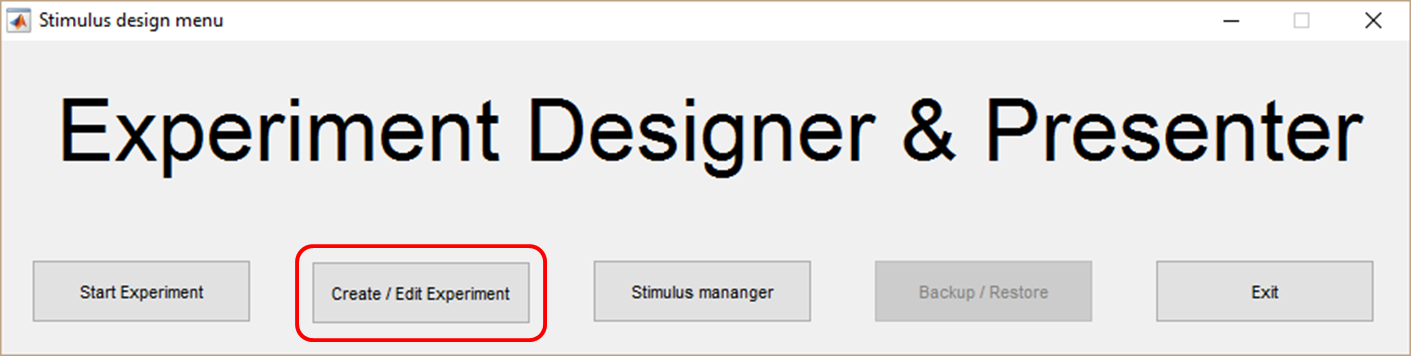

Experiment Manager
By clicking the Create/Edit Experiment button you enter the Experiment editor, where you can create your experimental design. Create and name your experiment or edit an existing experiment.
Name your experiment. Preferably use an intuitive name in order to avoid confusion.

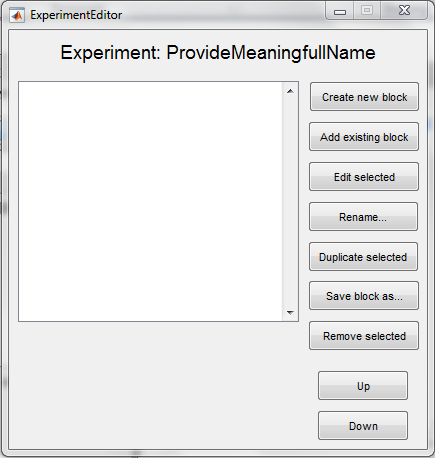

Experiment Editor
Create, add, edit, duplicate, save and remove experimental blocks. A block contains a sequence of events, such as the ones you created in the stimulus manager/editor.
Figure: Experimental flow

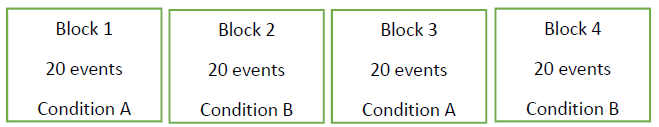

Figure: Block buildup

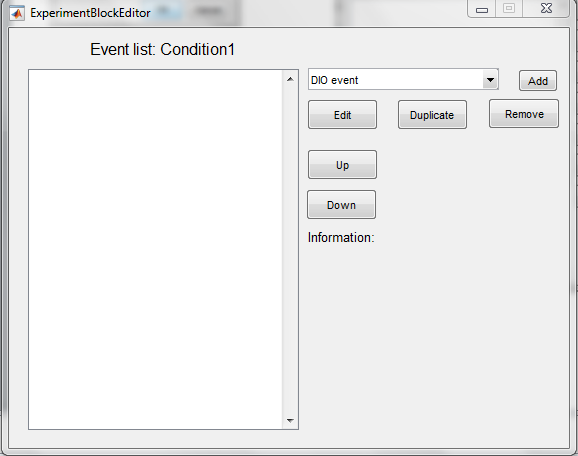

Experiment Block Editor
‐Duplicate selected:To repeat a selected block in your design. Note that also within a block, sequences of events can be repeated.
‐Add existing block: Add previously saved block.
‐Save Block: Save Blocks to file to use them in multiple experiments. This is also recommended if performing separate test runs per block.
‐Up/ Down: Change the order of the blocks
Experiment Manager
start opens the following window
Figure: Name your experiment
Figure: Loaded experiment
Figure: Blocks within experiment
EVENTS
Select the appropriate type of event in the dropdown menu and click add.
General settings used in several event types:
‐Dataset: select the appropriate previously created stimulus set (see Stimulus manager).
‐Random selection/ Pick randomly/ Randomness: Select if the order of events of this type played should be random. Note that to randomize between participants, select the option seed when you start the experiment. (see also with replacement)
‐With replacement/Put back: If Random selection/ Pick randomly/ Randomness = yes, select this option if no stimuli should be repeated within a block. If stimuli can be repeated do not select this option.
BUG If Randomization = 0, select with replacement in case repeat event is used otherwise an error appears stating you have too little items in your stimulus set.
EVENT TYPES

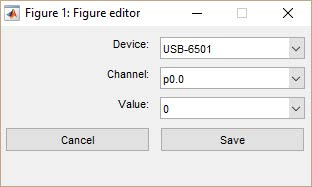

DIO

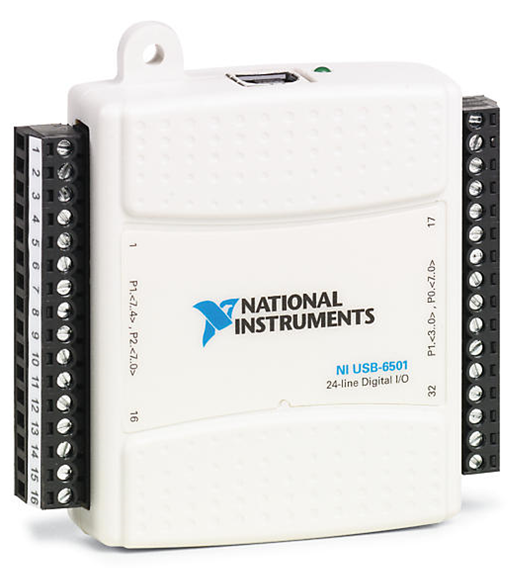

‐Device: select the device to which the pulse should be sent. USB-6501 is the National Instruments AD box as part of the setup.
‐Channel: select the input channel that should receive the pulse (see layout in the right). This is where you connect the input to the EEG recorder. It is usually convenient to use one channel per type of event.
TIP: assign channels in order of logical activation within the experiment
‐Value: 1 = on (send 5V pulse) or 0 = off (resets to 0V).
Sends a voltage pulse (trigger) to the EEG/EMG recording equipment.
NOTE: If trigger pulses are used, a NI digital I/O (USB 6501) should be connected

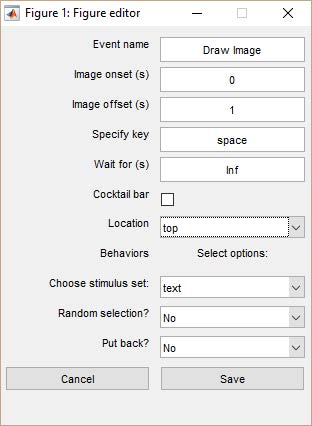

Image while KB check
‐Image onset: time of the image to appear on the screen with respect to beginning of the event (thus the response waiting time).
‐Image offset: time of the image to disappear.
‐Specify key: enter the key to be pressed by the participant. The time is measured from the event onset to the moment the key is pressed.
‐Wait time: time to wait for the participant’s response.
‐Cocktail bar: show time bar to the participant in order for them to know how much time they have to respond.
‐Location: position in the screen where the cocktail bar should appear.
-Choose stimulus Set: Select from which stimulus set you created the stimuli should be drawn.
-Random Selection: : Selecting No: The program will present the stimuli in the order they are placed in the stimulus set. NOTE: You have to have sufficient files for the program to select for the entire experiment. Selecting Yes: The program will randomly select a file from the stimulus set. Once it has done that for the entire experiment the order of the files is logged and every participant will get the same earlier randomized order. To use a different random order for every participant change the seed, just befor you stsart the experiment.
-Put Back?: Selecting No: the file is marked as used and not used again for this run of the experiment. NOTE: You have to have sufficient files for the program to select for the entire experiment. Selecting Yes: The file remains available for the rest of the experiment!
Shows an image while at the same time a response can be given by using a key on the keyboard.
Inserts a random inter‐stimulus interval of the chosen duration between minimum interval and maximum interval with steps of Step Size.

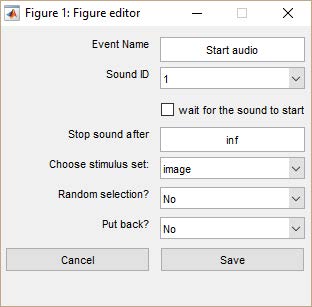

Sound
‐Sound ID: number of the sound in the Stimulus Set (first in list= 1, second in list=2 etc.).
‐Wait for sound to start: Subsequent stimuli will not be played until the sound is loaded and played
‐Stop sound after: Stops the sound after specified time (s).
‐other options are similar to General settings.
Warning: For repeating events/blocks see Repeat events/block and stimulus set.
Loads and plays an audio file for a specified time, or for the duration of the whole file.

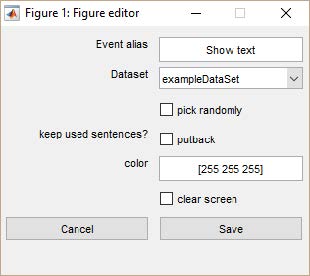

Text
‐In MATLAB, go to folder ‘textData’ (in the main folder MATLAB Stimulus Presenter, which should be the current folder).
‐Place your text file in this folder. Now you can select the stimulus set in the dropdown menu ‘Dataset’ in the text event editor. Note that only one text file can be selected in the stimulus set and the different lines in the text file are the separate events (in contrast to separate files in audio and image sets).
Warning: For repeating events/blocks see Repeat events/block and stimulus set.
Other options similar to General settings.
Shows a line of text from your text file in the Stimulus Set. In contrast to image and audio files, you need to manually copy the text file into the stimulus folder.

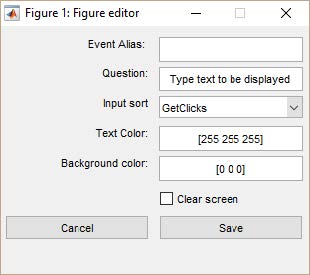

ASK
‐Question: text to be displayed to the participant during the experiment.
‐Input sort: type of input that the participant should respond with
‐GetClick: participant input is a mouse click.
‐GetChar: participant input is a series of key presses (i.e. a word, or sentence). The answer will appear in the screen visible to the participant. Instruct the participant to press Enter in order for the experiment to continue.
-GetString: same as above, except no text will be visible on the screen.
‐Text Color: default RGB code [225 225 225] = white. See colorcodehex
‐Background color: default RGB code [0 0 0] = black. See colorcodehex
‐Clear screen: If selected, the previous image will disappear before the text is shown. Otherwise, the previous image will be overlapped by the current text.
Creates a question for the participant to respond to by typing text or clicking the mouse. Note that the numpad on the right of a keyboard does not generate input.

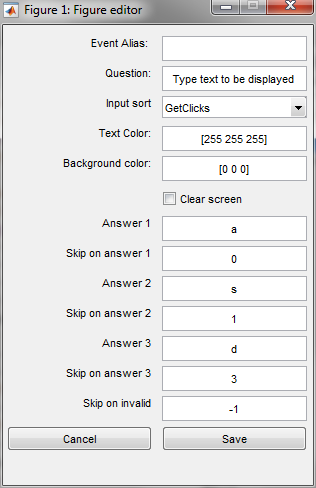

ASK and BRANCH
‐Event alias:
‐Question:
Creates multiple questions for the participant to respond to and the appropriate action in your experiment on the basis of the answers.

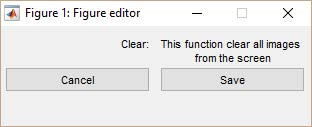

Clear screen
‐Cancel
‐Save
Clears all images from the screen after an image event. If this option is not used, images can be placed on top of each other (stacked).

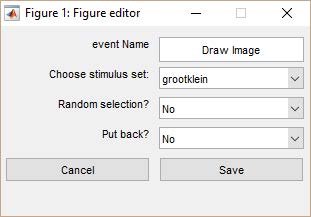

Pictures
Other options similar to General settings.
Note that the duration of the image shown is determined by the following Wait event. In order to show a picture for 500 ms, create one Show Image event followed by a Wait event of 0.5 seconds.
Note that once a Show Image event has been created you cannot select a new stimulus set in ‘’choose dataset’’. Thus in order to change pictures in the event, either create a new event or change the existing stimulus set.
Warning: For repeating events/blocks see Repeat events/block and stimulus set.
See also Clear Screen.
Displays images on the screen.
Wait (pause)
Note that the duration of the wait function after an image determines the duration of the image (show image).
Inserts a break between events of a specified duration in seconds.

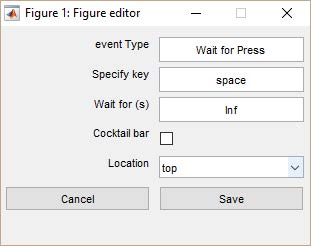

Wait for keypress
‐Specify key: determines the key which the participant should press in order to continue. This can be used for example to measure response time. In order to see the response time, view the log file.
‐Wait for (s): determines the time window in which a response can be given before the next event starts (see also Ask).
‐Cocktail bar: show time bar to the participant in order for them to know how much time they have to respond.
Waits for the participant’s keypress

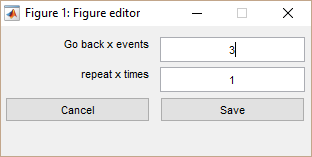

Repeat x events
‐Go back x events: The number of the event from which to start repeating, counting back from therepeat‐event. Thus if there are 3 image events and the fourth event is the repeat event, go back 3 events in order to repeat all images.
‐repeat x times: Number of times the sequence should be repeated, after the event itself. Thus repeat an event 2x will play the event 3x total.
‐Warning: Using Repeat events for image and audio events: Repeating events or duplicating blocks does NOT repeat the exact same file in the stimulus set, thus if an event is repeated there should be twice as many data files in the set. For example, if a block has 3 events and a repeat event is set to 3 back and 2 times repeat, the stimulus set should contain 6 files. However, the text event will start at the beginning of the file again, in contrast to image and audio events.
Use this function to repeat block sections

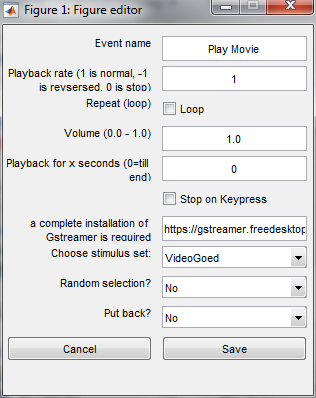

Movie
‐event name:
‐playback rate:
Use this function to play movies within your experiment
RUNNING AN EXPERIMENT
TEST RUN
Before you actually start your experiment on even a pilot participant, always perform a test run because usually not everything is perfect the first time and you need to adjust some settings. We also recommend saving and testing blocks separately. See also debug.Test run Before you actually start your experiment on even a pilot participant, always perform a test run because usually not everything is perfect the first time and you need to adjust some settings. We also recommend saving and testing blocks separately. See also debug.
Start an Experiment
start opens the window below
Click Start Experiment.
1) Select the experiment you want to run.
2) Subject ID: Enter a new Subject ID for each participant to create an individual log file per participant (see logging).
Seed
In order to create a different random order for each individual participant, enter a different number here for each participant.
Preload/load on use
select preload in case of large files (for example audio). This option loads all files per block before the block starts, so the loading does not take time and memory resources during the experiment. If ‘load on use’ is selected, large or many files may cause delays in the experiment.
The maximum total size of the files that can be preloaded is 64MB. Thus, per block use no more than 64MB size in a stimulus set in case you use preload.
Start message
here you can write a start message for participants to read.
Debug
If you type the text “debug” in the Starting Message for the participant, the experiment will start in a separate window on the main screen instead of full screen. Don’t forget to also test the full screen version before you start the actual experiment.
Start Experiment opens the following window

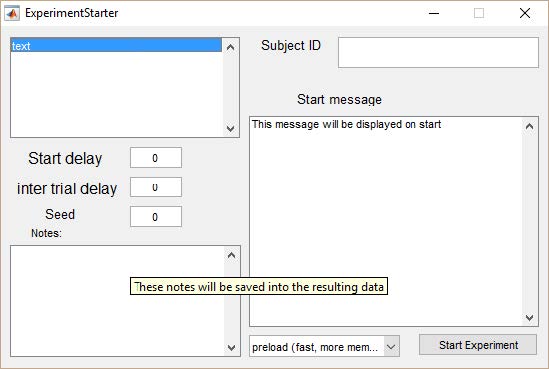

Figure: experiment starter
Click start experiment
the start message will show and when the space bar is pressed the experiment will start. If an external screen is attached to the computer running the program, the experiment will run on the external screen.
Quit/stop
In order to quit/stop the experiment while running, press Shift+2 (@) and close the experiment window. If this does not work, try Ctr+Alt+Delete to open the task manager to close the window.
The final warning!: At the end of the experiment the following message will appear “You have reached the end! Thanks for participating!” DO NOT press Enter or the space bar at this point, otherwise the experiment will run again. Press Esc instead to exit the experiment at the end.
Logging: Each experiment will create a log file. At the end of the experiment you can see where and how the log file is stored: Results_experimentname.csv in the home folder of MATLAB Stimulus Presenter.
